Deadlift Platforms: What Each Layer Is Actually Doing

This page explains the layers. It is not a build plan and it does not give you a cut list.

That is deliberate and it is the map's own scoping for this subject. A platform involves sheet material, cutting, fasteners and a load, and a set of dimensions from an article read by someone we cannot see, in a building we do not know, is not something this site publishes. What is genuinely useful, and what nobody explains, is why the thing is built the way it is, because once you understand that you can evaluate any plan you find, including the ones that are wrong.

We have not built a platform, used one, or measured one.

The four jobs a platform has

Everything about the construction follows from these, and any plan that does not do all four is doing something else.

1. Spread the load. A dropped barbell is a concentrated impact at two small points. A platform takes that and delivers it to the floor over a much larger area. This is the main job and it is the one that is invisible.

2. Give a stable, level standing surface. You are pulling a heavy load and your feet need a surface that does not move, does not compress unevenly and does not shift under you.

3. Take the impact where the bar lands, and not where you stand. These are two different requirements on the same object, which is why a platform is not one material throughout.

4. Protect the floor underneath, whether that is a slab, a subfloor or something you are renting.

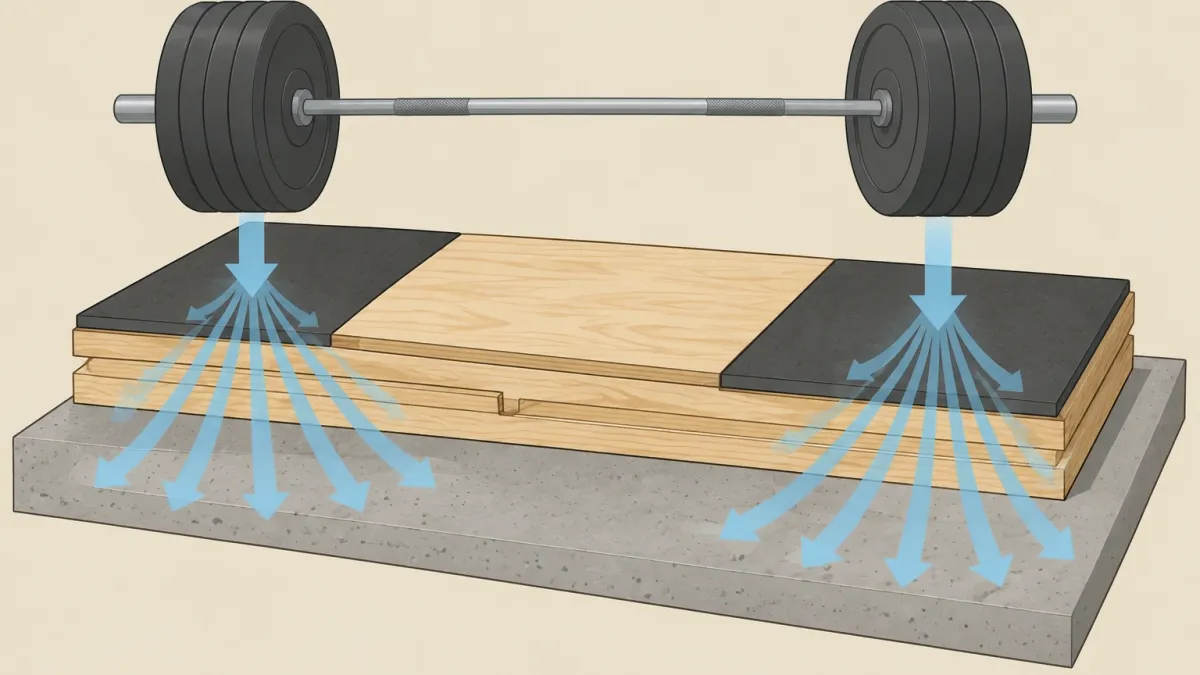

Why the plywood is under the rubber, and not on top

This is the question in the search and it has a clean answer.

The rubber absorbs. The plywood distributes. They are two different functions and the order follows from what each one does.

Rubber on top takes the impact first, deforms, and spreads the peak force over a slightly longer time and a slightly wider area. That is what protects the plates and the bar.

Plywood underneath is a rigid sheet, and a rigid sheet spreads a load laterally. It turns a concentrated impact into a distributed one before it reaches the floor, which is the entire reason it is there. Put plywood on top and you have a hard surface taking a direct impact, and it will not last.

And the plywood is also job two, the flat stable standing surface, which is why the center of a platform is usually the wood rather than the rubber.

Why there are usually two layers of wood

Most designs use more than one sheet, laid so the joints do not line up.

Two reasons. A joint is the weakest line in a sheet, so staggering them means there is no continuous weak line anywhere in the platform. And stacked layers behave more stiffly than a single sheet of the same total thickness, which improves the spreading job.

We publish no thickness, ply count, grade or fastener specification, because those depend on what is being dropped, on the span, and on what is underneath, and a figure from a general page is not a specification.

Why the rubber is only in some places

Look at a platform and the rubber is at the ends, where the plates land, and the middle is wood or a different surface.

Because the two zones have opposite requirements. Where the plates land you want absorption. Where you stand you want no give at all, because a compressible surface under your feet costs you stability and, in a heavy pull, stability is not optional.

A platform that is soft in the middle is a worse platform, which is counter-intuitive if you have arrived thinking cushioning is the whole point.

And this is why "just put a stall mat down" is not a platform. A single uniform layer cannot do both jobs, which is one of the trade-offs on horse stall mats or rubber gym tiles.

What a platform does not do

It does not increase what your floor will carry.

This is the misconception that matters most, and it is worth being blunt about. A platform changes how the load is delivered to the floor. It does not change what the floor structure can support.

Spreading a load is a real and useful thing. It is not the same as raising a capacity. What your floor will carry is a structural question about your building, and it is decided by a licensed structural engineer. What the codes actually publish about it, including the fact that the code runs a distributed check and a concentrated check separately rather than substituting one for the other, is on the home gym floor weight limit.

It also does not solve noise transmission to a room below. Nothing in this category does, and no consumer rating measures the event anyway.

Whether you need one at all

Genuinely worth asking before spending a weekend on it.

A platform is for dropping. If you lower the bar under control, most of what a platform provides is already provided by adequate rubber flooring in the right zone, and the requirements that flooring has to meet are on what the floor actually has to survive.

A platform is also for a slab or a solid ground floor. On an upper floor, the questions the platform does not answer are the ones that matter most.

And a platform is a fixed object. It occupies a footprint permanently, it is heavy, and it is not something you move to sweep behind.

If you are going to build one

Two honest sentences rather than instructions.

This involves cutting sheet material, which means a saw, which means the ordinary precautions that go with a saw, including eye protection and a way of supporting the sheet that does not involve holding it. If you are not comfortable with that, this is a job for someone who is, and having sheets cut to size at the supplier is a normal service.

And take any plan you find and check it against the four jobs above. A plan whose layers do not do all four is a plan you can now evaluate for yourself, which is the point of this page.

What this page does not publish

No dimensions, no thicknesses, no ply grades, no fastener specifications and no build steps.

No product names. We have bought nothing.

No claim about what your floor will carry, which is a licensed structural engineer's question and always will be.
